NEORV32 Test Setup using the NEORV32 as a Nios II drop-in replacement

This setup provides a very simple "demo setup" that uses the NEORV32 Qsys/Platform Designer component so that the NEORV32 can be used as a drop-in replacement of the Nios II soft CPU from Intel. The demo is running on the Terasic DE0-Nano FPGA Board.

The design is based on the de0-nano-test-setup, but the NEORV32 cpu is added as a QSys/Platform Designer component. As an example the DMEM is "external" and uses an Platform Designer SRAM block.

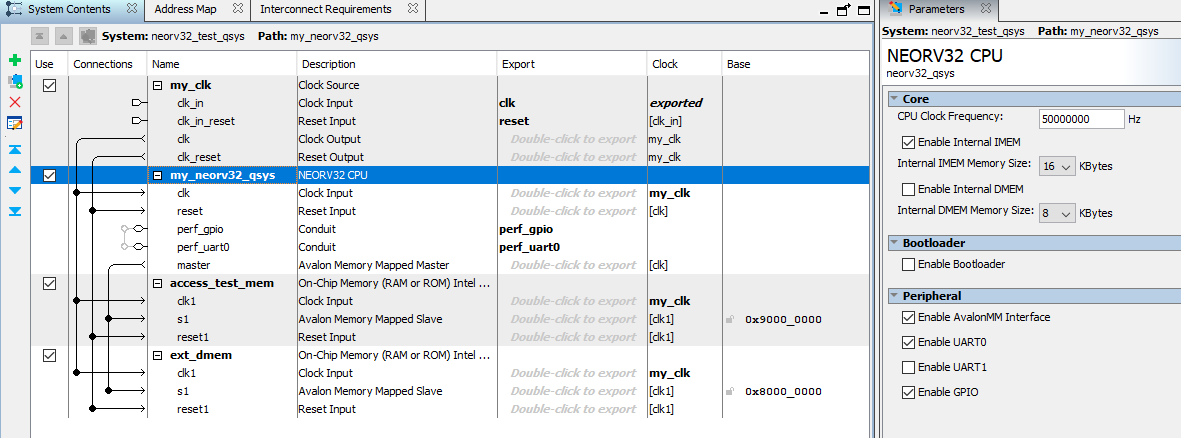

NEORV32 in Platform Designer

For details about the design and use of the NEORV32 as a Qsys/Platform Designer component please look at the Qsys component files and documentation here NEORV32 Qsys Component

It uses the simplified simple example top entity that provides a minimalistic interface (clock, reset, UART and 8 LEDs).

  • FPGA Board: 📚 Terasic DE0-Nano FPGA Board
  • FPGA: Intel Cyclone-IV EP4CE22F17C6N
  • Toolchain: Intel Quartus Prime (tested with Quartus Prime 18.1.1 - Lite Edition)

NEORV32 Configuration

For NEORV32 configuration the default values of the neorv32_top in version 1.6.0 are used with a few exceptions:

  • Memory: 16kB instruction memory (internal IMEM), 8kB data memory (external DMEM), No bootloader
  • Tested with version 1.6.0
  • Clock: 50MHz from on-board oscillator
  • Reset: via on-board button "KEY0"
  • GPIO output port gpio_o (8-bit) connected to the 8 green user LEDs ("LED7" - "LED0")
  • UART0 signals uart0_txd_o and uart0_rxd_i are connected to the 40-pin GPIO_0 header
    • uart0_txd_o: output, connected to FPGA pin C3 - header pin GPIO_01 (pin number "4")
    • uart0_rxd_i: input, connected to FPGA pin A3 - header pin GPIO_03 (pin number "6")

FPGA Utilization

Total logic elements 4,064 / 22,320 ( 18 % )
Total registers      1932
Total pins           12 / 154 ( 8 % )
Total virtual pins   0
Total memory bits    230,400 / 608,256 ( 38 % )
Embedded Multiplier  9-bit elements	0 / 132 ( 0 % )
Total PLLs           0 / 4 ( 0 % )

How To Run

Open the Quartus project file, compile and upload to FPGA.
