feature request: possibility to remove dotted lines #10

New Issue

bernsteining · 2025-07-09T18:59:56Z

bernsteining commented

2025-07-09 18:59:56 +00:00

Hey,

First of all thanks a lot for chronos, it helps me a lot to write my courses in typst, and the examples are perfect.

However, I was asking myself if there's a way to remove the dotted line when calling _par("Participant").

I'm using a mock partipant "Charlie" as follows to express an insecure channel where an eavesdropper could be, and the dotted lines are mixed with the messages "Alice" and "Bob" are exchanging, thus reducing readability.

Maybe there's a workaround without using a mock participant ? Or maybe adding such a feature (removing dotted lines) could make chronos even better.

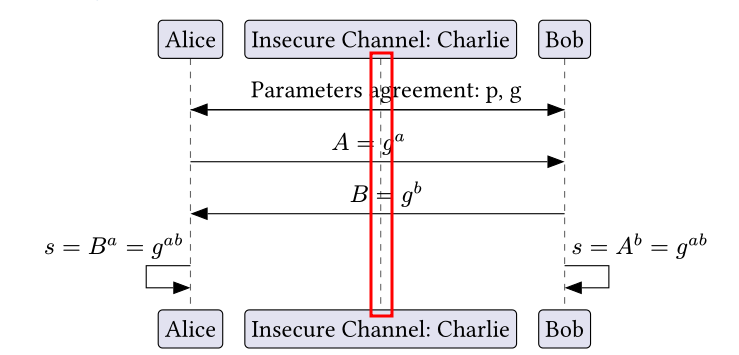

Here's the typst code snippet showcasing my problem, with a screenshot of the compiled result.

#chronos.diagram({
  import chronos: *
  _par("Alice")
  _par("Insecure Channel: Charlie")
  _par("Bob")

_sync({
    _seq("Bob", "Alice", comment: "Parameters agreement: p, g", comment-align: "center")
    _seq("Alice", "Bob", comment: "")
  })

  _seq("Alice", "Bob", comment: $A = g^a$, comment-align: "center")
  _seq("Bob", "Alice", comment: $B = g^b$, comment-align: "center")
  _sync({
    _seq("Bob", "Bob", comment: $s = A^b = g^(a b)$, comment-align: "start")
    _seq("Alice", "Alice", comment: $s = B^a = g^(a b)$, comment-align: "start", flip:true)
  })
})

If adding such a feature sounds interesting to you, I would be pleased to have a look to the source code of chronos in order to implement it, if you give me pointers.

Otherwise, I'm curious about workarounds, as I didn't find a suitable one when looking at the examples.

Cheers,

Hey, First of all thanks a lot for `chronos`, it helps me a lot to write my courses in `typst`, and the examples are perfect. However, I was asking myself if there's a way to remove the dotted line when calling `_par("Participant")`. I'm using a mock partipant "Charlie" as follows to express an insecure channel where an eavesdropper could be, and the dotted lines are mixed with the messages "Alice" and "Bob" are exchanging, thus reducing readability. Maybe there's a workaround without using a mock participant ? Or maybe adding such a feature (removing dotted lines) could make `chronos` even better. Here's the `typst` code snippet showcasing my problem, with a screenshot of the compiled result. ```typst #chronos.diagram({ import chronos: * _par("Alice") _par("Insecure Channel: Charlie") _par("Bob") _sync({ _seq("Bob", "Alice", comment: "Parameters agreement: p, g", comment-align: "center") _seq("Alice", "Bob", comment: "") }) _seq("Alice", "Bob", comment: $A = g^a$, comment-align: "center") _seq("Bob", "Alice", comment: $B = g^b$, comment-align: "center") _sync({ _seq("Bob", "Bob", comment: $s = A^b = g^(a b)$, comment-align: "start") _seq("Alice", "Alice", comment: $s = B^a = g^(a b)$, comment-align: "start", flip:true) }) }) ``` If adding such a feature sounds interesting to you, I would be pleased to have a look to the source code of `chronos` in order to implement it, if you give me pointers. Otherwise, I'm curious about workarounds, as I didn't find a suitable one when looking at the examples. Cheers,


33 KiB

HEL added the

enhancement

good first issue

labels 2025-07-09 20:13:15 +00:00

HEL commented

2025-07-09 20:13:34 +00:00

Thank you for using chronos and taking the time to open this issue !
Removing the dotted line is indeed not currently possible
Hereunder are some workarounds (including yours)

I will also look into adding an option to either style the line or remove it entirely (shouldn't be too complex)

If you have any other questions or feel like a feature is missing, don't hesitate to open a new issue

#let body = {
  import chronos: *
  _sync({
    _seq("Bob", "Alice", comment: "Parameters agreement: p, g", comment-align: "center")
    _seq("Alice", "Bob", comment: "")
  })

  _seq("Alice", "Bob", comment: $A = g^a$, comment-align: "center")
  _seq("Bob", "Alice", comment: $B = g^b$, comment-align: "center")
  _sync({
    _seq("Bob", "Bob", comment: $s = A^b = g^(a b)$, comment-align: "start")
    _seq("Alice", "Alice", comment: $s = B^a = g^(a b)$, comment-align: "start", flip:true)
  })
}

#chronos.diagram({
  import chronos: *
  _par("Alice")
  _par("Insecure Channel: Charlie")
  _par("Bob")

  body
})

#chronos.diagram({
  import chronos: *
  _par("Alice")
  _par("Bob")

  _sep[Insecure Channel: Charlie]

  body
})

#chronos.diagram({
  import chronos: *
  _par("Alice")
  _par("Bob")

  _seq(
    "Alice", "Bob",
    comment: [Insecure Channel: Charlie],
    color: luma(0%).transparentize(100%),
    comment-align: "center"
  )

  body
})

Thank you for using chronos and taking the time to open this issue ! Removing the dotted line is indeed not currently possible Hereunder are some workarounds (including yours) I will also look into adding an option to either style the line or remove it entirely (shouldn't be too complex) If you have any other questions or feel like a feature is missing, don't hesitate to open a new issue ```typst #let body = { import chronos: * _sync({ _seq("Bob", "Alice", comment: "Parameters agreement: p, g", comment-align: "center") _seq("Alice", "Bob", comment: "") }) _seq("Alice", "Bob", comment: $A = g^a$, comment-align: "center") _seq("Bob", "Alice", comment: $B = g^b$, comment-align: "center") _sync({ _seq("Bob", "Bob", comment: $s = A^b = g^(a b)$, comment-align: "start") _seq("Alice", "Alice", comment: $s = B^a = g^(a b)$, comment-align: "start", flip:true) }) } #chronos.diagram({ import chronos: * _par("Alice") _par("Insecure Channel: Charlie") _par("Bob") body }) #chronos.diagram({ import chronos: * _par("Alice") _par("Bob") _sep[Insecure Channel: Charlie] body }) #chronos.diagram({ import chronos: * _par("Alice") _par("Bob") _seq( "Alice", "Bob", comment: [Insecure Channel: Charlie], color: luma(0%).transparentize(100%), comment-align: "center" ) body }) ```

HEL referenced this issue

2025-07-09 20:45:13 +00:00

Add parameter to style participant line #11

HEL commented

2025-07-09 20:54:11 +00:00

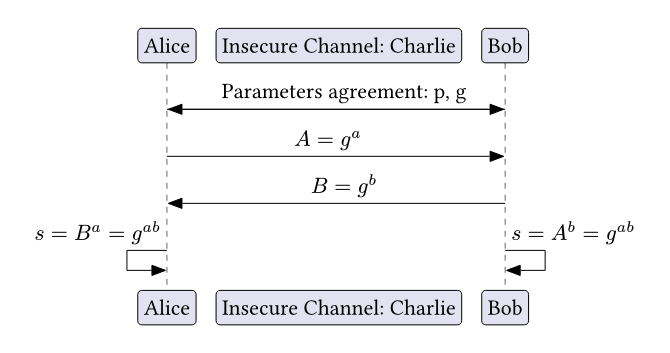

With #11, you should now be able to completely hide the line by setting its stroke to none

As mentioned in the PR, I plan on adding more control over styling by using CeTZ' builting styles system, but this should already do the trick for the example you provided

Reusing the previous example:

#chronos.diagram({
  import chronos: *
  _par("Alice")
  _par("Insecure Channel: Charlie", line-stroke: none)
  _par("Bob")

  body
})

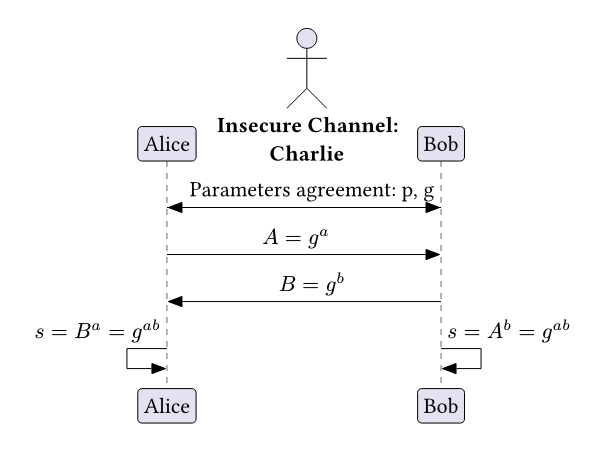

Or even nicer:

#chronos.diagram({
  import chronos: *
  _par("Alice")
  _par(
    "Charlie",
    display-name: align(center)[*Insecure Channel:\ Charlie*],
    line-stroke: none,
    show-bottom: false,
    shape: "actor"
  )
  _par("Bob")

  body
})

With #11, you should now be able to completely hide the line by setting its stroke to `none` As mentioned in the PR, I plan on adding more control over styling by using CeTZ' builting styles system, but this should already do the trick for the example you provided Reusing the previous example: ```typst #chronos.diagram({ import chronos: * _par("Alice") _par("Insecure Channel: Charlie", line-stroke: none) _par("Bob") body }) ``` ![example_1.png](/attachments/3ba7813a-13e6-454e-8526-1533f0e6a5f3) Or even nicer: ```typst #chronos.diagram({ import chronos: * _par("Alice") _par( "Charlie", display-name: align(center)[*Insecure Channel:\ Charlie*], line-stroke: none, show-bottom: false, shape: "actor" ) _par("Bob") body }) ``` ![example_2.png](/attachments/5c23daa5-3549-4f85-a1b7-38c90dd1609b)


56 KiB


50 KiB

bernsteining commented

2025-07-09 23:29:50 +00:00

Wow, thank you so much ! That was fast :)

I managed to install the dev branch locally, and it works like charm.

Good job !

Wow, thank you so much ! That was fast :) I managed to install the `dev` branch locally, and it works like charm. Good job !

👍 1

HEL commented
