IEC gates support #10

New Issue
Closed
opened 2025-06-20 12:42:05 +00:00 by bono · 3 comments
bono commented 2025-06-20 12:42:05 +00:00
Contributor
Copy Link
Copy Source

Hi, first of all, thanks for doing such high quality Typst packages!

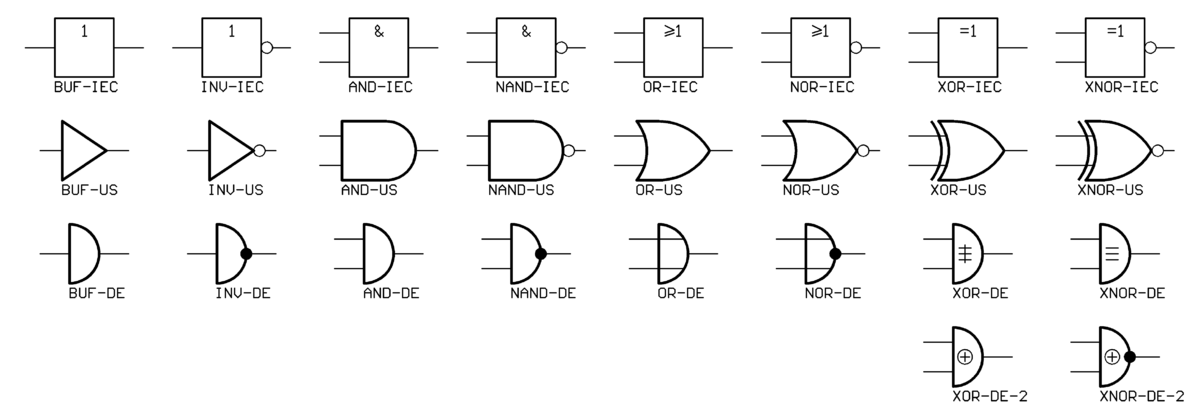

I wonder how difficult is to add IEC gates for combinational circuits, it can be useful to have them.image.png

Hi, first of all, thanks for doing such high quality Typst packages! I wonder how difficult is to add IEC gates for combinational circuits, it can be useful to have them.![image.png](/attachments/4e3d33f3-70ed-4496-a8ea-511f5ac89aa7)
67 KiB
HEL added the new component label 2025-06-21 07:14:11 +00:00
HEL commented 2025-06-21 07:41:30 +00:00
Owner
Copy Link
Copy Source

They don't seem too hard to add
I might have a go at it but I can't promise a deadline
You can take a look at how other logic gates are implemented in the time being

They don't seem too hard to add I might have a go at it but I can't promise a deadline You can take a look at how other logic gates are implemented in the time being
bono commented 2025-06-22 15:30:00 +00:00
Author
Contributor
Copy Link
Copy Source

Great, after spending some time I think I have a working implementation. I will submit the PR later :D

Great, after spending some time I think I have a working implementation. I will submit the PR later :D
👍 1
HEL commented 2025-06-29 13:21:23 +00:00
Owner
Copy Link
Copy Source

closed by #11

closed by #11
HEL closed this issue 2025-06-29 13:21:23 +00:00
