Add description-width config option #21

2026-08-18T12:14:56Z

dromell commented

2026-08-18 12:14:56 +00:00

First-time contributor

Problem

Descriptions and values are drawn as a single line that never wraps. A diagram is
scaled to fit the width it is rendered into, so the longest label is what decides
that scale — one long description makes the whole diagram, bit cells and indices
included, shrink until that line fits.

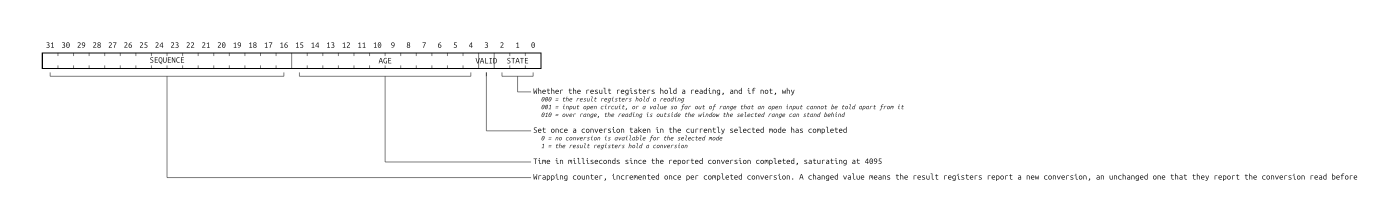

Before — config.config(), in a document 700pt wide:

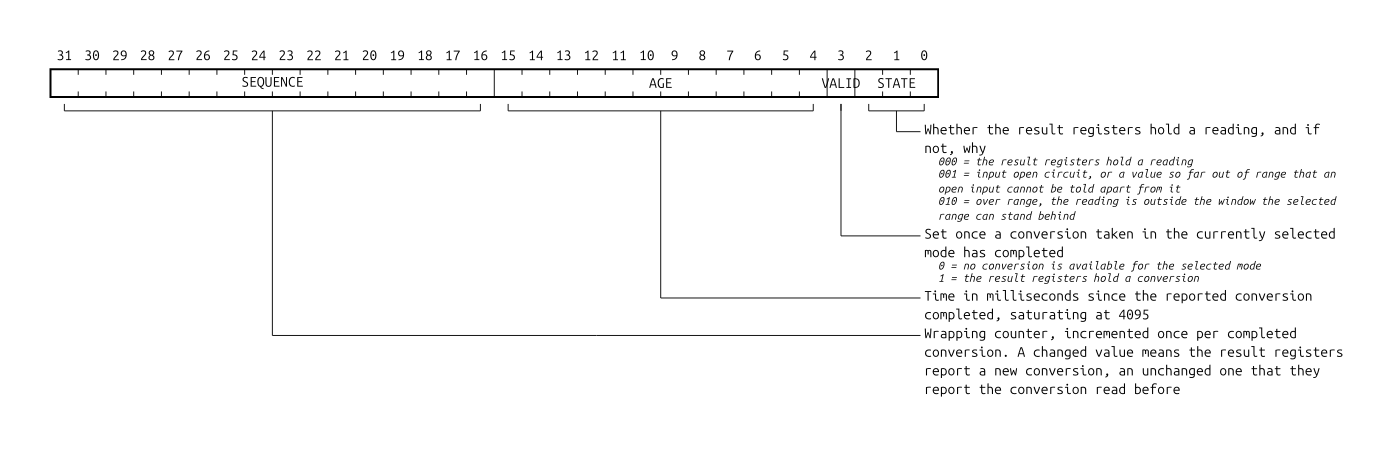

After — config.config(description-width: 460), same schema, same page:

What the option does

description-width wraps labels at that width, so the length of a description no
longer decides how large the diagram is drawn. Values wrap at the same right edge as
the description they belong to. It composes with left-labels,
force-descs-on-side and ltr-bits.

Wrapping means a label is no longer one line tall, so labels can no longer be spaced
by a fixed line height. Each is now offset by the height it actually occupies,
measured before it is placed. That is why render gained a context block.

Compatibility

The option defaults to none, which keeps the single-line behaviour on the original
code paths.

## Problem Descriptions and values are drawn as a single line that never wraps. A diagram is scaled to fit the width it is rendered into, so the longest label is what decides that scale — one long description makes the whole diagram, bit cells and indices included, shrink until that line fits. **Before** — `config.config()`, in a document 700pt wide: ![before.png](/attachments/901466e1-e6f1-4c8f-ad91-2a1812e50342) **After** — `config.config(description-width: 460)`, same schema, same page: ![after.png](/attachments/52fe356d-336f-4270-9688-96b650d1e985) ## What the option does `description-width` wraps labels at that width, so the length of a description no longer decides how large the diagram is drawn. Values wrap at the same right edge as the description they belong to. It composes with `left-labels`, `force-descs-on-side` and `ltr-bits`. Wrapping means a label is no longer one line tall, so labels can no longer be spaced by a fixed line height. Each is now offset by the height it actually occupies, measured before it is placed. That is why `render` gained a `context` block. ## Compatibility The option defaults to `none`, which keeps the single-line behaviour on the original code paths.
