Fix sequence connection with leftmost lifeline #25

Merged
HEL merged 5 commits from fix/issue-24-layered-lifelines into dev 2026-01-21 13:30:54 +00:00
Conversation 0 Commits 5 Files Changed 15 +15305 -15051
HEL commented 2026-01-21 13:28:00 +00:00
Owner
Copy Link

This PR fixes #24 by adding a new outer-lifeline-connect parameter to _seq. When set to true, sequence coming from the left connect to the leftmost lifeline, as before. The new default behavior (when set to false), makes sequences connect to the latest/rightmost lifeline

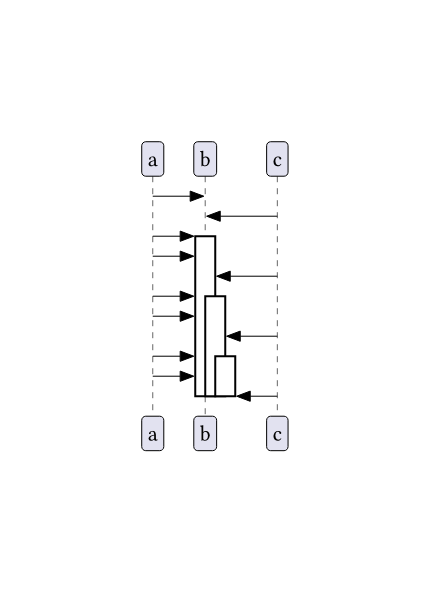

Before / outer-lifeline-connect: true

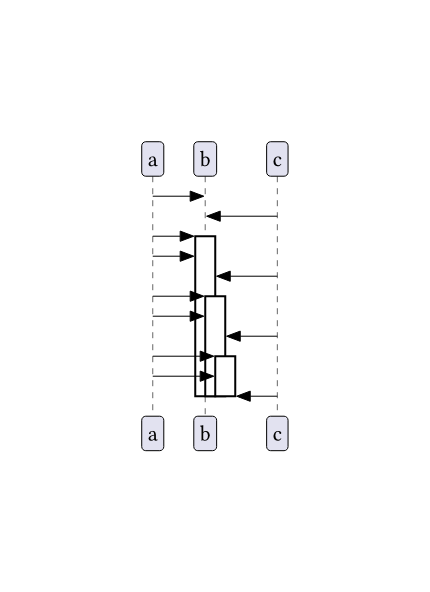

After / outer-lifeline-connect: false (new default)

This PR fixes #24 by adding a new `outer-lifeline-connect` parameter to `_seq`. When set to `true`, sequence coming from the left connect to the leftmost lifeline, as before. The new default behavior (when set to `false`), makes sequences connect to the latest/rightmost lifeline **Before / `outer-lifeline-connect: true`** ![2.png](/attachments/944d9d9e-0a36-441d-8a12-8003a1c65af3) **After / `outer-lifeline-connect: false` (new default)** ![1.png](/attachments/81cd4ba5-ed95-457d-9693-9f66f1ef08e9)
7.4 KiB
7.4 KiB
HEL added 5 commits 2026-01-21 13:28:00 +00:00
changed default sequence anchor to latest lifeline 692a4570ff
fixed sequence endpoint when no active lifeline df785be454
updated tests for new sequence anchoring 03c0f1cc7e
added test for new outer lifeline parameter 3a7e0a8176
added new outer-lifeline-connect parameter to manual
All checks were successful
CI / tests (pull_request) Successful in 18s
Details
511368d405
HEL merged commit a7db89b214 into dev 2026-01-21 13:30:54 +00:00
HEL deleted branch fix/issue-24-layered-lifelines 2026-01-21 13:30:54 +00:00
