feature: added guided wire style #14

Shmerlard · 2025-08-17T19:26:50Z

Shmerlard commented

2025-08-17 19:26:50 +00:00

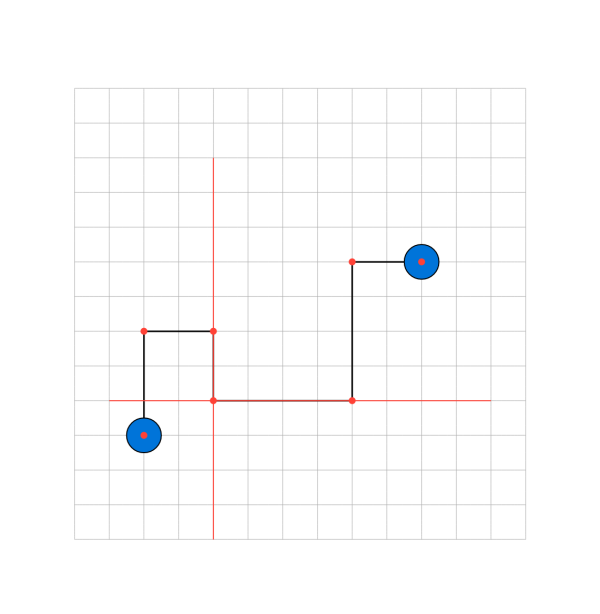

this PR added a guided wire style
the red dots are the points created
the red lines are for the center
basically you can input directions, center, and margin to create a more powerful wire that dodges
its best to just play with it

#circuiteria.circuit(
    length: 3em,
    {
    import circuiteria: *
  import cetz: draw

    draw.grid((-2, -2), (11, 11), step: 1, stroke: gray + 0.5pt)
    draw.circle((0,1),name:"ci1", fill:blue, radius: 0.5)
    draw.circle((8,6),name:"ci2", fill:blue, radius: 0.5)

    draw.set-style(stroke: red + 1pt)
    wire.wire("w1", ("ci1", "ci2"),
            bus: true,
            style: "guided",
            guided-center: (25%, 20%),
            guided-margins: (60%, 25%),
            guided-sides: ("north", "west")
    )
    // draw.line((2,-2),(2,9))
    // draw.line((10,2),(-1,2))
    draw.set-style(radius: 0.1, fill: red, stroke: none)
    draw.circle("w1.start")
    draw.circle("w1.start2")
    draw.circle("w1.guide-start")
    draw.circle("w1.center")
    draw.circle("w1.guide-end")
    draw.circle("w1.end")
    draw.circle("w1.end2")
}
)

this PR added a guided wire style the red dots are the points created the red lines are for the center basically you can input directions, center, and margin to create a more powerful wire that dodges its best to just play with it <img width="450" alt="guided_wire.png" src="attachments/0d02644a-0df6-4892-89bf-b41cdedb1f9c"> ``` #circuiteria.circuit( length: 3em, { import circuiteria: * import cetz: draw draw.grid((-2, -2), (11, 11), step: 1, stroke: gray + 0.5pt) draw.circle((0,1),name:"ci1", fill:blue, radius: 0.5) draw.circle((8,6),name:"ci2", fill:blue, radius: 0.5) draw.set-style(stroke: red + 1pt) wire.wire("w1", ("ci1", "ci2"), bus: true, style: "guided", guided-center: (25%, 20%), guided-margins: (60%, 25%), guided-sides: ("north", "west") ) // draw.line((2,-2),(2,9)) // draw.line((10,2),(-1,2)) draw.set-style(radius: 0.1, fill: red, stroke: none) draw.circle("w1.start") draw.circle("w1.start2") draw.circle("w1.guide-start") draw.circle("w1.center") draw.circle("w1.guide-end") draw.circle("w1.end") draw.circle("w1.end2") } ) ```


19 KiB

Shmerlard added 13 commits 2025-08-17 19:26:50 +00:00

add iec gates 3ccb79c6c2

add examples 9966656e8b

improve default-draw-shape by drawing a rectangle 8c91ccdd54

improve iec-gate c5e4f8039a

rename iec gates to have consistent naming ea8277ee5b

fix typo in xnor gate 71f128f6c9

add examples and add iec gates to manual 94d5d6b854

Merge pull request 'feature: add IEC gates' (#11 ) from bono/circuiteria:add_iec_gates into dev 693676d61a

Reviewed-on: #11
Reviewed-by: Louis Heredero <louis@herdac.ch>

font arguement, radius arguement 043bb339fe

now in `block.typ` the radius is optional
and the font can be set in the canvas

small fix for radius f2ce91ec39

no font is set in circuit 1a0a659ace

Merge pull request 'Add radius parameter to block' (#12 ) from Shmerlard/circuiteria:main into dev 94fef0a245

Reviewed-on: #12
Reviewed-by: Louis Heredero <louis@herdac.ch>

added guided wire 87643983ec

Shmerlard changed target branch from main to dev

2025-08-17 20:08:46 +00:00

HEL added the

enhancement

label 2025-08-18 12:13:15 +00:00

Shmerlard changed title from ~~added guided wire~~ to feature: added guided wire style

2025-08-19 19:51:29 +00:00

HEL approved these changes 2025-08-24 11:00:37 +00:00

HEL left a comment

Very nice work, thank you very much 👍

HEL merged commit d73215c889 into dev

2025-08-24 11:01:02 +00:00

HEL referenced this issue from a commit

2025-08-24 11:01:04 +00:00

Merge pull request 'feature: added guided wire style' (#14) from Shmerlard/circuiteria:dev into dev
