Introduces a new "s-shape" wire style connecting two ports on opposite cardinal sides (east<->west or north<->south) via 5 segments joined at 4 corners (u1-start, u1-end, u2-start, u2-end). The axis is auto-detected from port anchors; when both endpoints share the same perpendicular coordinate (single-block loopback) `s-ratio-mid` is reinterpreted as an absolute signed offset so the crossbar can still be placed above or below the endpoints. Supports anchor-based placement via the `s-at-*` family of parameters (s-at-1, s-at-mid, s-at-2) analogous to `zigzag-at` and `u-at`.
circuiteria
Circuiteria is a Typst package for drawing block circuit diagrams using the CeTZ package.
Examples
|
|

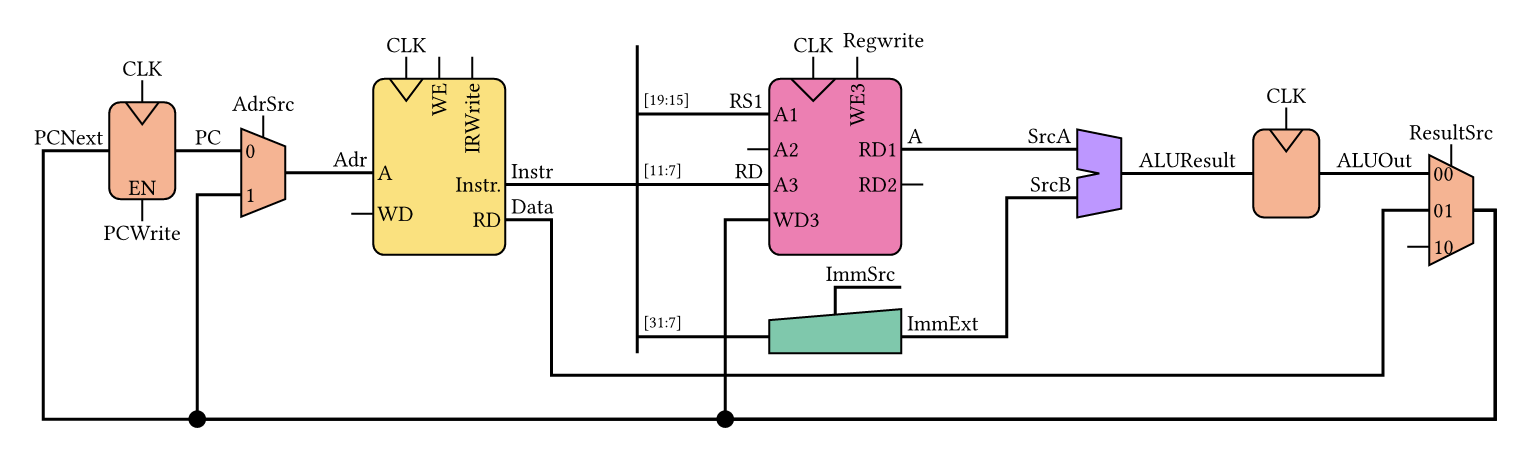

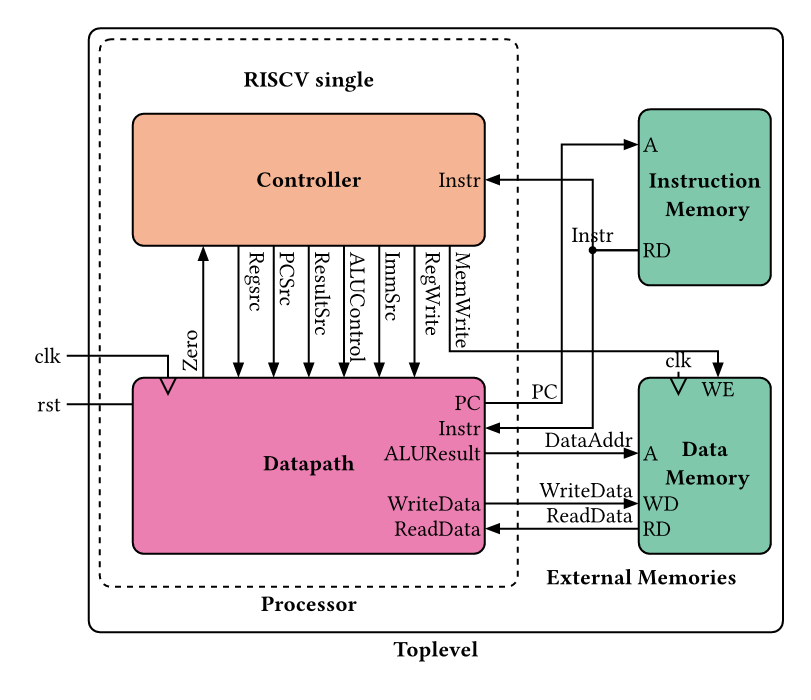

| A bit of everything | |
|
|
| Wires everywhere | |
|
|
| Groups | Rotated |
Note
These circuit layouts were copied from a digital design course given by prof. S. Zahno and recreated using this package
Click on the example image to jump to the code.
Usage
For more information, see the manual
To use this package, simply import circuiteria and call the circuit function:
#import "@preview/circuiteria:0.2.1"
#circuiteria.circuit({
import circuiteria: *
...
})
