circuiteria

Circuiteria is a Typst package for drawing block circuit diagrams using the CeTZ package.

Examples

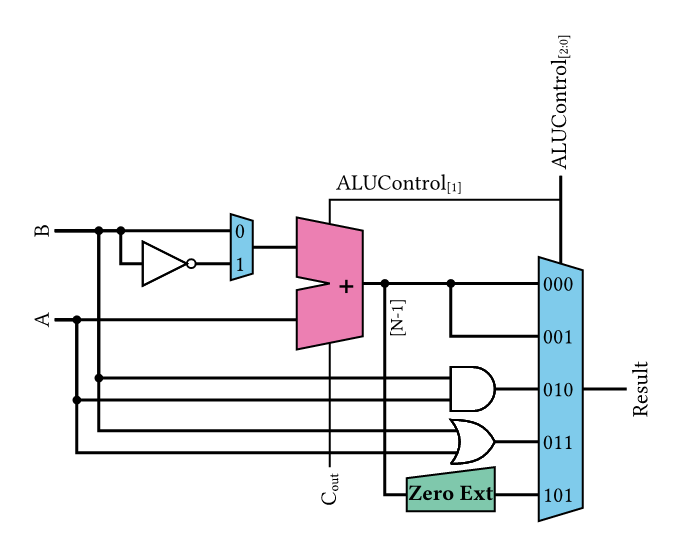

A bit of everything

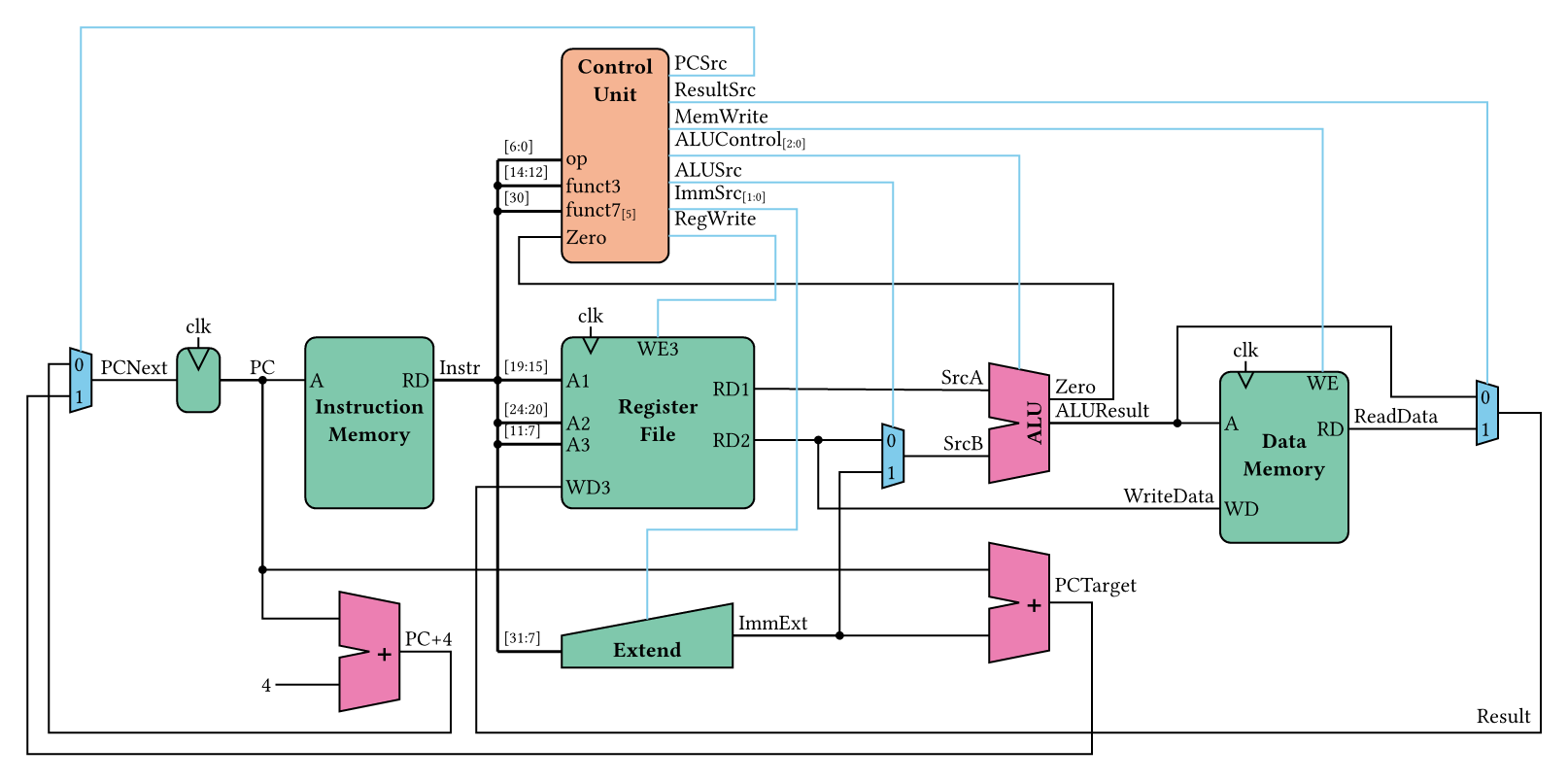

Wires everywhere

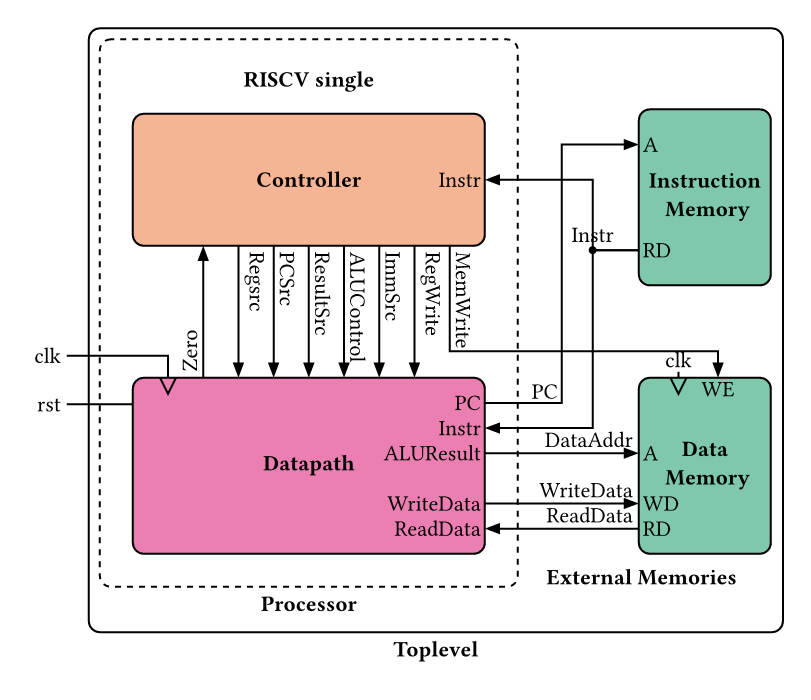

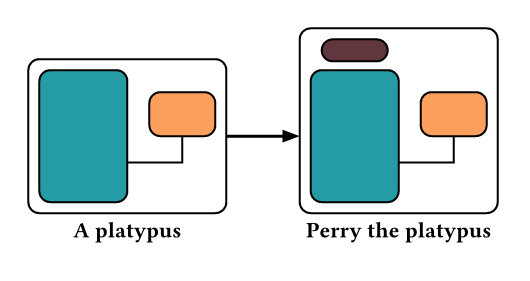

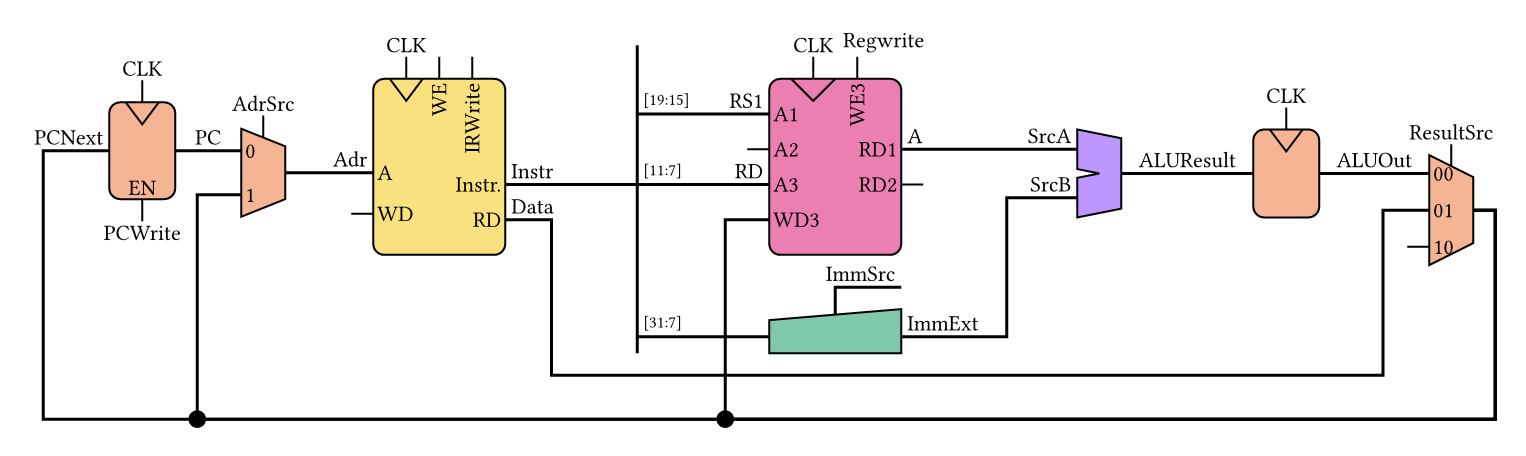

Groups	Rotated

Note

These circuit layouts were copied from a digital design course given by prof. S. Zahno and recreated using this package

Click on the example image to jump to the code.

Usage

For more information, see the manual

To use this package, simply import circuiteria and call the circuit function:

#import "@preview/circuiteria:0.2.1"
#circuiteria.circuit({
  import circuiteria: *
  ...
})
