Add Verilog parsing and rendering support #26

2026-09-10T13:04:52+02:00

purpl3F0x commented

2026-09-10 13:04:52 +02:00

First-time contributor

Hi, the above changes add some support for parsing a Verilog file and autogenerating a circuit module. The lib also supports bundling AXI buses and indicating active low resets.

Testing is limited, happy to make changes if needed.

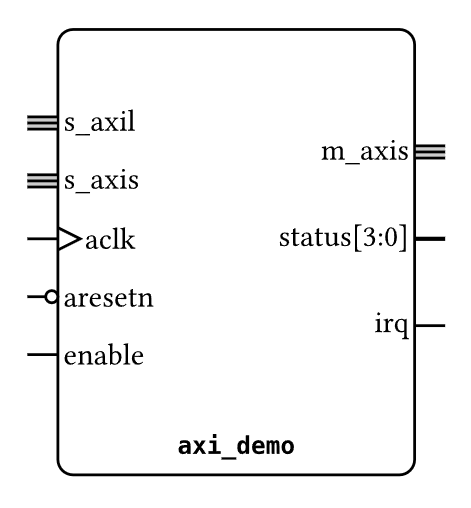

Example

Hi, the above changes add some support for parsing a Verilog file and autogenerating a circuit module. The lib also supports bundling AXI buses and indicating active low resets. Testing is limited, happy to make changes if needed. Example <img width="353" alt="{8CE34B23-70F4-4DFD-9883-ABAB63814DEF}.png" src="attachments/23b8cbd9-9ef8-4a86-af11-3623cd547c2c">


14 KiB

purpl3F0x added 1 commit 2026-09-10 13:18:26 +02:00

Add Verilog parsing and rendering support 0c1272e35e

- Introduced `verilog.typ` for parsing Verilog/SystemVerilog source code, supporting both ANSI and non-ANSI port styles.
- Implemented functions to analyze modules, infer AXI4, AXI4-Lite, and AXI4-Stream buses, as well as clock and reset signals.
- Added rendering capabilities for Verilog modules, allowing for visual representation of ports and buses.
- Created a new `gallery/verilog.typ` file to facilitate the drawing of Verilog blocks in diagrams.

Signed-off-by: Stavros Avramidis <stavros9899@gmail.com>

purpl3F0x force-pushed main from 55ea5cdef6 to 0c1272e35e

2026-09-10 13:18:26 +02:00

Compare

HEL added the enhancement label 2026-09-14 07:13:14 +02:00

HEL commented

2026-09-15 12:30:34 +02:00

This looks great, thank you for your contribution !
I'm not very familiar with Verilog but I will try to review this soon

This looks great, thank you for your contribution ! I'm not very familiar with Verilog but I will try to review this soon

purpl3F0x added 1 commit 2026-10-25 10:29:06 +01:00

Enhance Verilog support by adding Vivado BRAM interface handling and updating documentation e60bfd4b43

Signed-off-by: Stavros Avramidis <stavros9899@gmail.com>

purpl3F0x added 1 commit 2026-11-03 12:04:09 +01:00

Add APB support 58f821070a

Signed-off-by: Stavros Avramidis <stavros9899@gmail.com>

purpl3F0x added 1 commit 2026-11-03 12:18:47 +01:00

Enhance Verilog support by adding BRAM read/write port handling and updating documentation 7c3eb26aa3

Signed-off-by: Stavros Avramidis <stavros9899@gmail.com>

purpl3F0x added 1 commit 2026-11-03 12:31:08 +01:00

Pack and center Verilog block ports with automatic spacing 6b861553b7

- Add `ports-align` ("center" by default, "top", "bottom", or "spread" for
  the previous evenly spread layout) and `ports-pitch` to `verilog.block`.
- Packed layouts use minimal margins, only reserving room for the module
  name and north/south ports, and size the block to the busiest side.
- The automatic height now also adapts to custom `ports-margins`.
- Regenerate the gallery image and the manual.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
Signed-off-by: Stavros Avramidis <stavros9899@gmail.com>

You are not authorized to merge this pull request.

This pull request can be merged automatically.

View command line instructions

Checkout

From your project repository, check out a new branch and test the changes.

git fetch -u https://git.kb28.ch/purpl3F0x/circuiteria main:purpl3F0x-main

git checkout purpl3F0x-main
